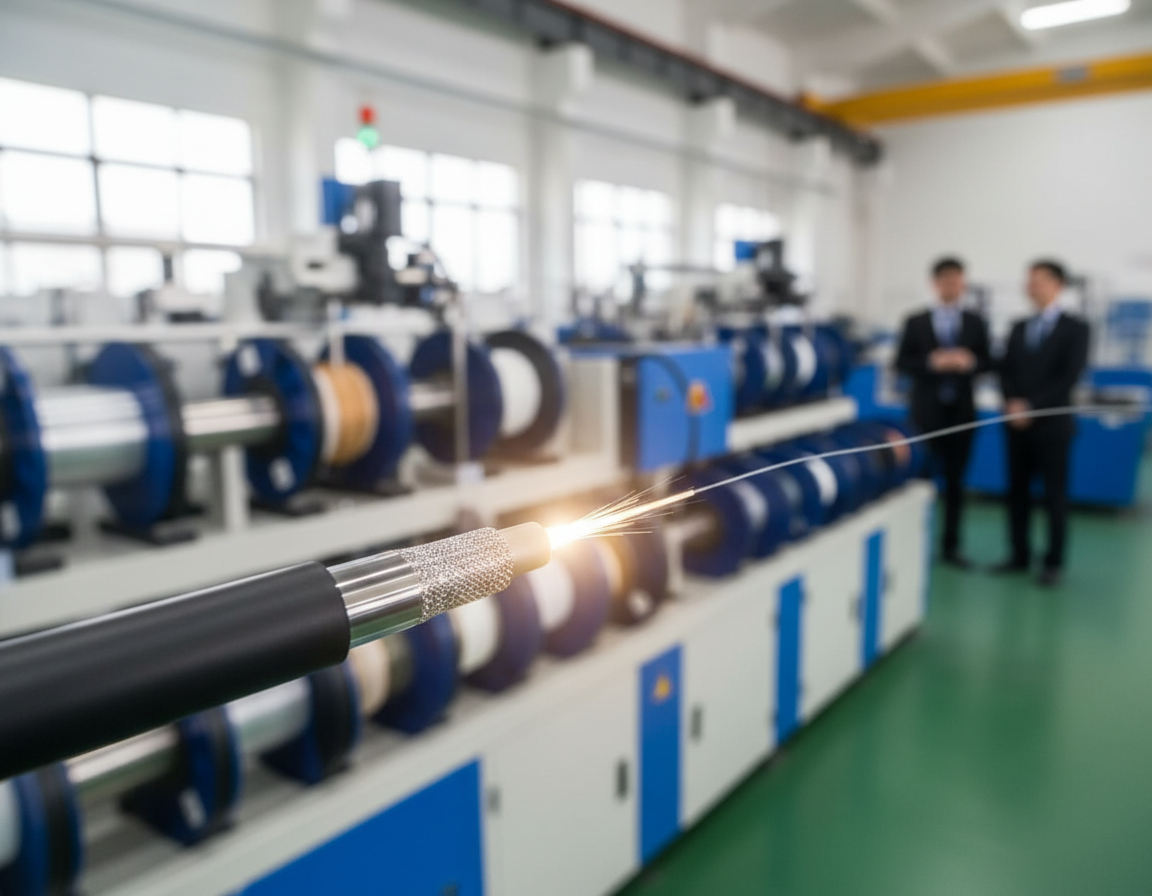

The FTTH Cable Production line is a coordinated suite of modules that turns optical fiber into ready-to-ship drop and distribution outputs with consistent, repeatable quality.
Compact Fiber Unit
This overview helps factory managers, production engineers, purchasing teams, and learners in the United States who evaluate how industrial manufacturing equipment converts delicate fiber into robust cables for service networks and communications infrastructure.
At its core, the end-to-end objective is simple: shield the fiber, maintain low optical loss, add strength for installation, and ship an output that survives both indoor and outdoor environments.
Expert equipment means stable tension control, synchronized motion control, consistent process operating windows, and clear documentation for customer acceptance. This guide helps align the line setup, materials, and validation plan to the target product instead of buying machines first and correcting later.
Readers will map stages such as fiber handling and preparation, buffering and coating, fiber organization and stranding, integration of strength elements, sheathing (outer-jacket extrusion), optional armor, and end-of-line testing and packaging.
Key points: A well-specified line reduces defects and ensures predictable delivery. Lock in process alignment before equipment purchase to save time and cost.
How A Fiber Optic Cable Production Line Operates Today
Where last-mile drop and distribution requirements meet shop-floor execution.
Modern production lines convert fine glass fiber into finished products used in U.S. broadband rollouts. Last-mile drop cable and ftth drop demand drives high volumes, so manufacturers emphasize consistent handling and standards compliance.
Core Modules & Material Flow
Material follows a clear sequence: pay-off (unwinding) → guiding + tensioning → secondary coating/coloring → organization / SZ stranding → strength member delivery → jacketing (sheathing) → cooling / curing → take-up and testing.
Modules To Outcomes
Stable fiber handling reduces attenuation and protects signal integrity for data and communications. Uniform jacketing supports installation and connector prep. Inline monitoring flags loss events before reels ship.
- Indoor vs. outdoor applications: different buffering and jacket compounds.
- Armored variants add steel tape or wire for rodent and crush resistance.
- Drop designs favor tight-buffered fibers and simplified connector prep.
Buyers should view lines as modular. Plants add armoring or skip steps to fit the product type. Throughput limits come from curing and dimensional control, not just motor speed.
Define Your Product & Data Standards Before Equipment Purchase
Begin with a clear product map that specifies the cable type, core count, intended service environment, and target user scenarios. This early definition narrows which modules the line must include, from tight-buffer units to SZ stranding and jacket extrusion systems.
Select Standards, Measurable Targets
Choose fiber standards such as ITU-T G.652D single-mode or bend-insensitive ITU-T G.657A1/A2 based on required bend performance and routing. Record optical loss budgets, tensile strength, crush/bend limits, and environmental durability targets before vendor selection.
- Map the exact product type and core/fiber count to define modules and control needs.
- Specify attenuation (loss) budgets and mechanical strength targets to guide material choice.
- Define required materials (buffer polymers, jacket compounds) and confirm supplier availability in the U.S.
Data Standards, Traceability, And Validation
Turn targets into factory-ready information: logged process variables, lot-level traceability, and test reports customers require for acceptance. Use R&D pilot runs to validate settings and cut scale-up time.
Fiber Secondary Coating Line
| Objective | Factory Impact | Typical Action |
|---|---|---|
| Minimal attenuation | Control of tension and alignment | Inline attenuation monitoring |
| Strong mechanical performance | Strength-element selection | Aramid or metal integration |
| Bend resistance | Fiber selection | Adopt G.657 variants |
Build Quality Into The Optical Fiber: Core, Cladding, And Coating Essentials
Strong optical performance begins in the glass, where core purity and cladding design set the limits for signal loss.
Core and cladding create the central layer structure: a solid, ultra-pure silica core transports light while a lower-index cladding confines it. That geometry is the basis for low-loss transmission and stable optical behavior in finished cables.
From Preform To Drawn Fiber
Manufacturing starts with preform laydown and consolidation. Moisture removal in a high-temperature furnace reduces defects that increase attenuation.
Drawing pulls the glass into a micron-scale strand. Geometry control here ties directly to stable attenuation and predictable transmission performance. A single blank can yield roughly 5 km of fiber, so process stability saves time and cost.
Primary Coating & Color Coding
Primary coating guards against scratches and handling damage; it is not the main tensile element. Color ID makes splicing, troubleshooting, and downstream fiber management easier.
- Preform consolidation: remove contaminants and moisture.
- Draw: control diameter and tension for low loss.
- Coating and color: protect and identify each fiber.
| Layer Type | Role | Buyer Verification |
|---|---|---|
| Core | Transmit light while minimizing attenuation | Define purity and loss specifications |
| Cladding layer | Confine light, control modal behavior | Verify index profile and geometry |
| Coating (primary) | Scratch protection and color ID | Verify coating adhesion and color coding |
FTTH Cable Production: Step-By-Step Line Setup From Buffering To Sheathing
A practical line setup walks each fiber from pay-off through buffering, stranding, and outer jacket to a finished reel.
Secondary coating & fiber coloring stations apply dual-layer UV-cured coatings (≈250 µm) and 1–12 channel color coding for tracking and traceability. Consistent UV cure rates and steady web tension reduce mix-ups and rework.
Buffering, Materials
Tight buffering (600–900 µm) improves handling and simplifies connector work. Choosing Hytrel, PVC, or LSZH changes flexibility, temperature range, and flame/smoke behavior.
SZ Stranding, Organization
SZ stranding uses alternating lay to balance geometry and give cable flexibility. Servo control for up to 24 fibers keeps lay pitch consistent and reduces attenuation risk.
Strength Members, Jacketing
Aramid yarn is the standard tensile element; it provides pull strength without stressing the fibers during installation.
Outer jacket extrusion with PVC, PE, or LSZH follows. Typical speeds are 60–90 m/min and require tight OD and concentricity control.
Armoring & Control Points
Where crush or rodent resistance is needed, add steel tape or wire armor and control tension. Operators track tension, cure state, concentricity, OD, and cooling to maintain quality.
| Stage | Key Control | Typical Range |
|---|---|---|
| Secondary coating process | UV cure & tension | ≈250 µm, high cure consistency |
| Tight buffer | Material selection | 600–900 µm (Hytrel, PVC, LSZH) |
| Sheathing/jacketing | OD/concentricity | Typically 60–90 m/min |
Optimize Production Speed And Process Control With Modern Automation
When factories run for 24/7 output, synchronized controls and tension systems become the backbone of reliable manufacturing.
PLC, HMI, Closed-Loop Tension For Steady Operation
Modern lines use Siemens PLC + HMI platforms to synchronize modules, manage recipes, and record process information. Closed-loop tension control protects the fiber during starts, stops, and speed changes.
Compact Fiber Unit
Match Speed To Curing, Dimensional Control
Line speed is often limited where curing, cooling, or extrusion dimensional control falls behind. UV cure completeness, water-trough stability, and chiller capacity define the real limit.
Layout, Changeover, And Procurement
Layout affects uptime: correct pay-off/take-up placement and protected fiber paths reduce damage and speed changeovers.
- Design quick-change tooling and documented setup procedures to reduce changeover time.
- Specify industrial power (380 V AC ±10%) and typical ≤55 kW load when ordering equipment.
- Require remote diagnostics, parts availability, and responsive service from the equipment company.
| Focus | Operational Value | Typical Standard |
|---|---|---|
| Module synchronization | Reduced scrap and repeatable runs | Siemens PLC/HMI |
| Tension regulation | Protects fiber and stabilizes loss | Closed-loop, high accuracy |
| Layout and changeover | Reduced downtime | Quick-change tooling and staging |
Testing And Quality Control To Reduce Loss And Improve Delivery Reliability
Robust testing and clear quality control convert raw fiber into reliable, field-ready cable reels.
Begin with optical verification. Inline attenuation testing and return loss checks confirm signal performance before reels exit the line.
Optical Checks & Signal Integrity
Attenuation testing is the main guardrail against performance complaints. Higher loss readings point to handling damage, microbends, or contamination.
Return loss checks target reflections that can affect sensitive links and tight network margins.
Mechanical, Environmental Validation
- Tensile pull tests verify strength members and installation safety.
- Crush and bend tests mimic real-world stresses during installation.
- Temperature cycling, moisture soak, and vibration testing de-risk outdoor and aerial deployments.
| Test Type | Objective | Typical Outcome |
|---|---|---|
| Attenuation test | Measure attenuation per km | Pass/fail vs. spec |
| Mechanical tests | Confirm pull/crush/bend performance | Installation suitability rating |
| Environmental validation | Recreate field conditions | Durability verification |
Traceability connects raw material lots, inline data, and final test results to reel IDs. Correct reeling, labeling, and protective packaging preserve quality and speed customer acceptance and delivery.
Conclusion
A strong manufacturing plan connects product targets with the line modules and control limits needed for reliable output. Define the intended FTTH product, service environment, and measurable specs before selecting equipment or layout.
Fiber fundamentals (core, cladding, coating) establish the optical baseline. Careful handling upstream preserves data integrity and keeps end-product quality within acceptance limits.
Configure buffering, organization/stranding, strength members, and jacket choices to match installation realities. Use automation and closed-loop controls to sustain speed, cut scrap, and make delivery predictable across U.S. markets.
Discipline matters: implement comprehensive testing, reel-level traceability, and documented quality systems so customers can accept reels quickly. Next step: convert these points into a purchasing checklist (spec targets, utilities, layout, and acceptance tests) before you request quotes or trials.
